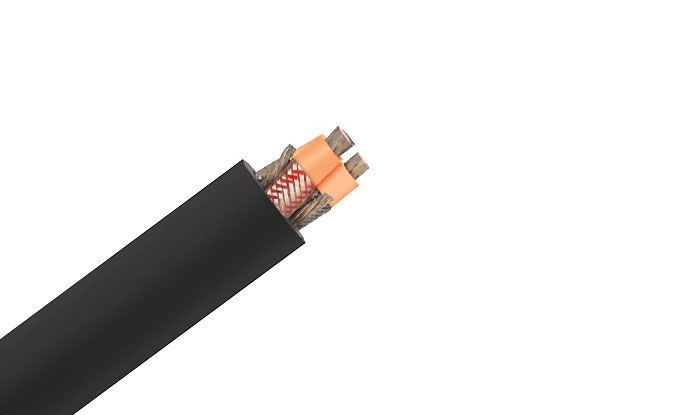

Type SHD-GC Power, Shielded Round Portable W/Ground-Check, EPR/CPE 2-25kv, 90˚C, Three Conductors Cable

Inquire Now

Product Details

Application

•Designed for use as trailing cables on AC mining equipment:
-Where a ground-check conductor is required for fail-safe monitoring
-With Bretby-type cable handling devices on longwall shearers
-Where induced voltages in the grounding system will not produce a hazard
-On low- and medium-voltage AC circuits where shielding is desired or required

Compliances

•ICEA S-75-381 Portable and Power Feeder Cables for use in mines and similar applications
•Meets flame test requirements and is accepted for listing by MSHA

Features

•Flexible insulation shield provides shock hazard protection
•Excellent heat, moisture, steam, oil, chemical and radiation resistance

Specifications

Low Voltage

Medium Voltage

Oil Resistance

Flame Retardant

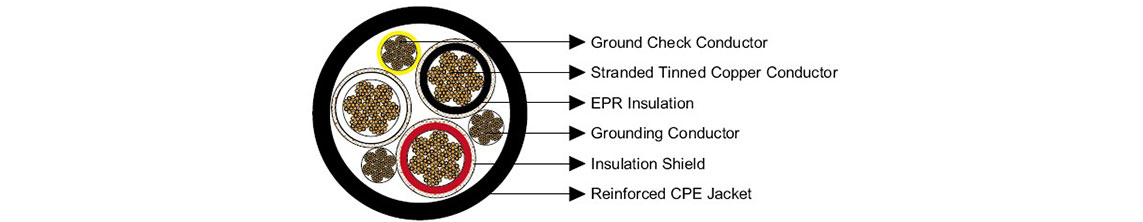

construction

Conductor:
6 AWG thru 500 kcmil coated annealed copper, bunched wires, rope-lay-stranded per ASTM B172
Insulation:
Ethylene Propylene Rubber (EPR) insulation
Insulation Shield:
A flexible coated copper/textile braid shield is applied over non-conducting overlapped tape
Ground-Check Conductor:
Annealed copper, rope-lay-stranded per ASTM B172, insulated with high-strength yellow polypropylene
Grounding Conductors:
Coated copper, rope-lay-stranded per ASTM B172
Two conductors in contact with the flexible copper braid shield
Jacket:
Reinforced, two-layer, extra-heavy-duty, lead- cured Chlorinated Polyethylene (CPE)
