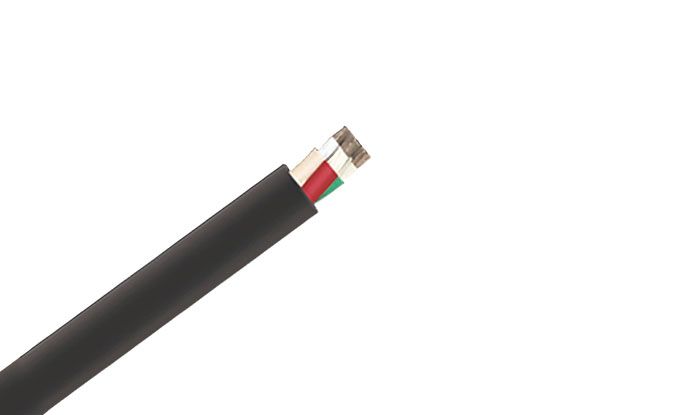

Type W Power, Round Portable, EPR/CPE 2000 Volts, 90˚C, Four Conductors Cable

Inquire Now

Product Details

Application

•Designed for use as trailing cables on AC mining equipment:
-Where a ground-check conductor is not required for fail-safe ground monitoring
-Where induced voltages do not present a problem

Features:

•Rope-lay-stranded conductors are extremely flexible and resistant to wire breakage
•Excellent heat, moisture, steam, oil, chemical and radiation resistance
•Flexible for easy handling
•Resists cutting, impact, abrasion, flame and sunlight
•Excellent thermal stability and physical properties over a broad temperature range

Compliances

•ICEA S-75-381 Portable and Power Feeder Cables for use in mines and similar applications
•Meets flame test requirements and is accepted for listing by MSHA

Specifications

Low Voltage

UV Resistance

Working Temperature 90℃

Oil Resistance

Flame Retardant

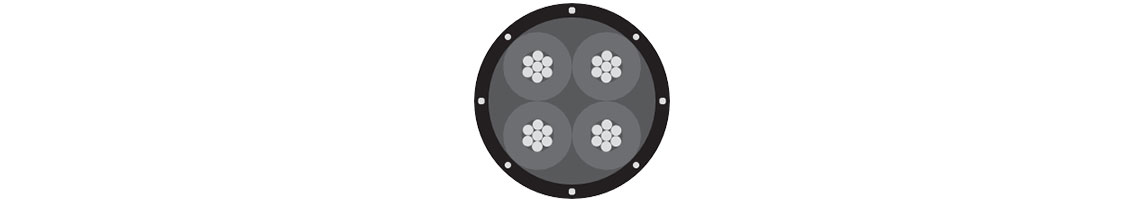

construction

Conductor:
6 AWG thru 500 kcmil coated annealed copper, bunched wires, rope-lay-stranded per ASTM B172
Insulation:
Ethylene Propylene Rubber (EPR) insulation colored (black, white, red and green)
Jacket:
Reinforced, two-layer, extra-heavy-duty, lead- cured Chlorinated Polyethylene (CPE)

Tags: Type W Power, Round Portable, EPR/CPE 2000 Volts,
