•Designed for use as trailing cables on AC mining equipment:
-Where a ground-check conductor is not required for fail-safe ground monitoring
-Where induced voltages in the grounding system do not present a hazard

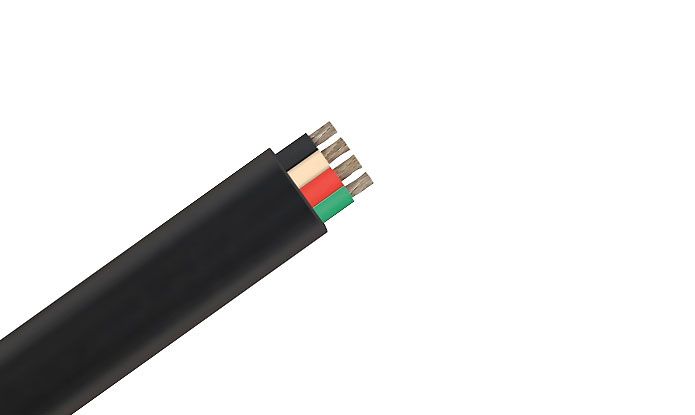

Type W Power, Flat Parallel Portable, EPR/CPE 2000 Volts, 90˚C, Four Conductors Cable
Type W Power, Flat Parallel Portable, EPR/CPE 2000 Volts, 90˚C, Four Conductors Cable
Product Details
Application
Compliances
ICEA S-75-381 Portable and Power Feeder Cables for use in mines and similar applications
Meets flame test requirements and accepted for listing by MSHA
Meets flame test requirements and accepted for listing by MSHA
Specifications
Low Voltage
Working Temperature 90℃
Flame Retardant

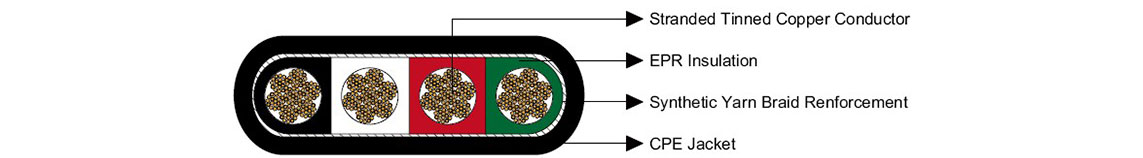

construction
- Conductor:
6 AWG thru 4/0 AWG coated annealed copper, bunched wires, rope-lay-stranded per ASTM B172
- Insulation:
Ethylene Propylene Rubber (EPR) insulation colored (black, white, red and green)
- Jacket:
Extra-heavy-duty, lead-cured Chlorinated Polyethylene (CPE)
