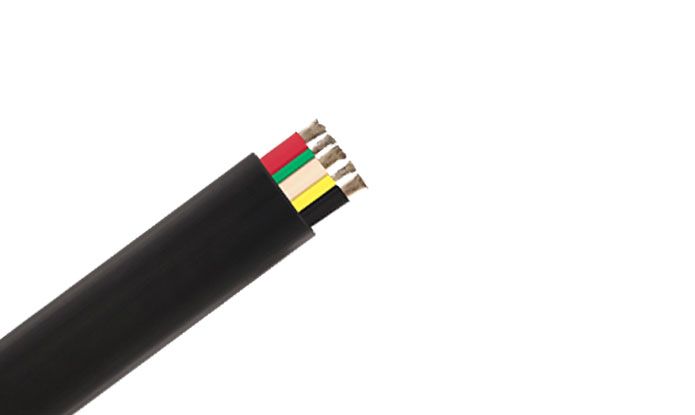

Type G-GC Power, Flat Parallel Portable W/Ground-Check, EPR/CPE 2000 Volts, 90˚C, Three Conductors Cable

Inquire Now

Product Details

Application

•Designed for use as trailing cables on AC mining equipment:
-Where ground monitoring is accomplished with a ground-check conductor
-Where induced voltages in the grounding system do not present a hazard

Compliances

•ICEA S-75-381 Portable and Power Feeder Cables for use in mines and similar applications
•Meets flame test requirements and is accepted for listing by MSHA

Features

•Flat construction provides maximum resistance to damage from crushing and runovers
•Shaped insulation to prevent conductors from shifting under the jacket
•Excellent physical toughness and heat stability
•Excellent heat, moisture, steam, oil, chemical, radiation and compression cut resistance

Specifications

Low Voltage

Working Temperature 90℃

Oil Resistance

Flame Retardant

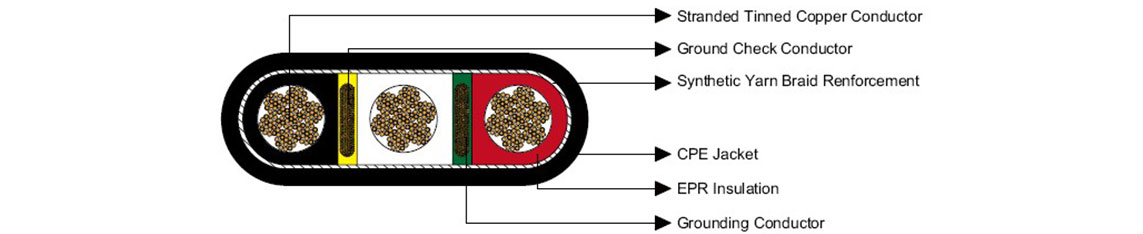

construction

Conductor:
6 AWG thru 4/0 AWG coated annealed copper, bunched wires, rope-lay-stranded per ASTM B172
Insulation:
Ethylene Propylene Rubber (EPR) insulation colored (black, white and red)
Ground-Check Conductor:
Coated copper, rope-lay-stranded and shaped ground-check conductor is insulated with a yellow elastomer
Grounding Conductor:
Coated copper, rope-lay-stranded and shaped with a green elastomer covering designed to keep the grounding conductor in place in the flat assembly
Jacket:
Extra-heavy-duty, lead-cured Chlorinated Polyethylene (CPE)
