Type G-GC Power, Round Portable W/Ground-Check, EPR/CPE 2000 Volts, 90˚C, Three Conductors Cable

Inquire Now

Product Details

Application

•Designed for use as trailing cables on AC mining equipment:
-Where a ground-check conductor is required for fail-safe monitoring
-Where induced voltages in the grounding system will not present a hazard

Compliances

•ICEA S-75-381 Portable and Power Feeder Cables for use in mines and similar applications
•Meets flame test requirements and is accepted for listing by MSHA

Features

•Ground-check-conductor provides fail-safe ground monitoring for maximum safety
•Improved ground-check conductor has longer flex life and durability
•Rope-lay-stranded conductors are extremely flexible and resistant to wire breakage

Specifications

Low Voltage

Working Temperature 90℃

Flame Retardant

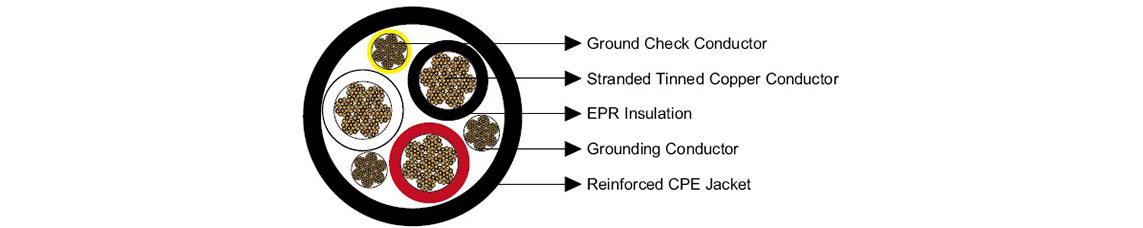

construction

Conductor:
6 AWG thru 500 kcmil coated annealed copper, bunched wires, rope-lay-stranded per ASTM B172
Insulation:
Ethylene Propylene Rubber (EPR) insulation colored (black, white and red)
Ground-Check Conductor:
Annealed copper, rope-lay-stranded per ASTM B172, insulated with high-strength yellow polypropylene
Grounding Conductor:
Two coated copper, rope-lay-stranded per ASTM B172
Jacket:
Reinforced, two-layer, extra-heavy-duty, lead- cured Chlorinated Polyethylene (CPE)
