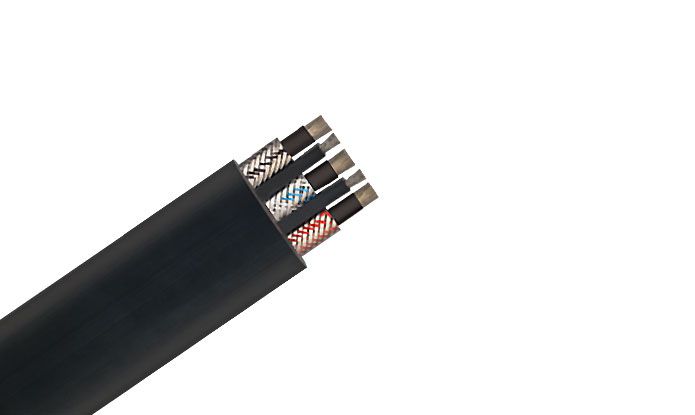

Type SHD Power, Flat Portable W/Ground, EPR/CPE 2000 Volts, 90˚C, Three Conductors Cable

Inquire Now

Product Details

Application

•Designed for use as trailing cables on AC mining equipment:
-Where induced voltages in the grounding system will not produce a hazard
-On low- and medium-voltage AC circuits where shielding is desired or required

Compliances

•ICEA S-75-381 Portable and Power Feeder Cables for use in mines and similar applications
•Meets flame test requirements and is accepted for listing by MSHA

Features

•Flexible insulation shield provides shock hazard protection
•Excellent heat, moisture, steam, oil, chemical and radiation resistance
•Flexible for easy handling

Specifications

Oil Resistance

Flame Retardant

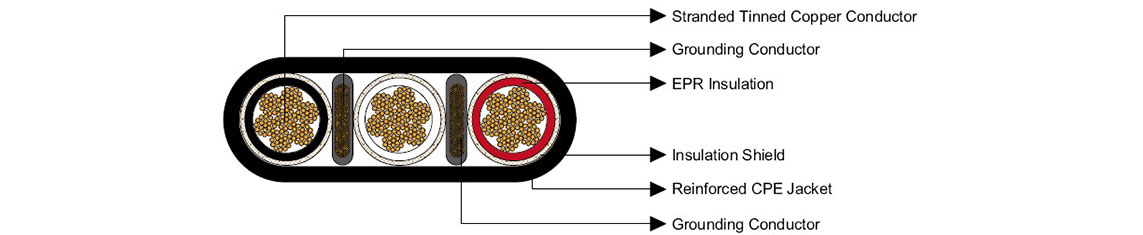

construction

Conductor:
2/0 AWG and 3/0 AWG coated annealed copper, bunched wires, rope-lay-stranded per ASTM B172
Insulation:
Ethylene Propylene Rubber (EPR) insulation
Insulation Shield:
A flexible coated copper/textile braid shield is applied over a non-conducting overlapped tape
Grounding Conductor:
Coated copper, rope-lay-stranded per ASTM B172 Two conductors, shaped and covered with an extruded semi-conducting shield
Jacket:
Reinforced, extra-heavy-duty, lead-cured Chlorinated Polyethylene (CPE)
