•Designed for use as trailing cables on DC mining equipment
•Designed for use where a grounding conductor is necessary
Type G Power, Flat Parallel Portable W/Ground, EPR/CPE 2000 Volts, 90˚C, Two Conductors Cable
Type G Power, Flat Parallel Portable W/Ground, EPR/CPE 2000 Volts, 90˚C, Two Conductors Cable
Product Details
Application
Compliances
•ICEA S-75-381 Portable and Power Feeder Cables for use in mines and similar applications
•Meets flame test requirements and is accepted for listing by MSHA
•Meets flame test requirements and is accepted for listing by MSHA
Specifications
Low Voltage
Working Temperature 90℃
Flame Retardant

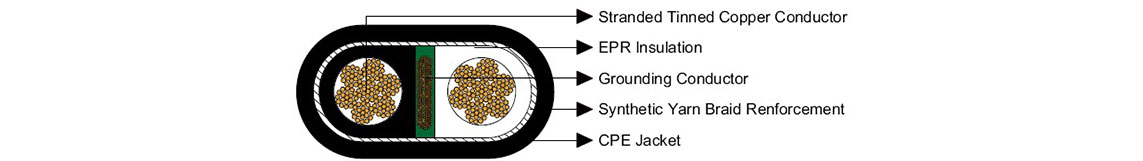

construction
- Conductor:
4 AWG thru 4/0 AWG coated annealed copper, bunched wires, rope-lay-stranded per ASTM B172
- Insulation:
Ethylene Propylene Rubber (EPR) insulation colored (black and white)
- Grounding Conductor:
Coated copper, rope-lay-stranded and shaped with a green elastomer covering designed to keep the grounding conductor in place in the flat assembly
- Jacket:
Extra-heavy-duty, lead-cured Chlorinated Polyethylene (CPE)
